anchour

M/T Aalborg



SHIP DATA

Imo no:
9327475
Flag
Danish (DIS)
Built
12/2005
Classification Society
DNV-GL
Ice Class
None
Hull
Double Hull IMO II
Summer deadweight
3.522 mts.
Summer draft
5,41 meters
Winter deadweight
3.389 mts.
Winter draft
5,29 meters
Length over all
90,50 meters
Beam
14,60 meters
Cubic capacity (98%)
4.360 m3
Slop tanks (98%)
126,6 m3
Segregations
5 (double valve)
TPC/TPI
11.900 mts. (TPC)
BCM
41,90 meters
KTM
33,00 meters
IGS fitted
Yes (nitrogen)
SBT/CBT
SBT
VRS
Yes
Gross tonnage
3.021
Net tonnage
1.125
Crane(s) SWL
1 x 1,5 mts
Coating
Epoxy
P & I Club
GARD
anchour

M/T Aland



SHIP DATA

Imo no:
9487380
Flag
Malta
Built
2013
Classification Society
American Bureau og Shipping
Ice Class
None
Hull
Double Hull
Summer deadweight
4,995 mts.
Summer draft
6.11 meters
Winter deadweight
4,825 mts.
Winter draft
5.985 meters
Length over all
9.84 meters
Beam
15.60 meters
Cubic capacity (98%)
5,225 m3.
Slop tanks (98%)
127.37 m3.
Segregations
10
TPC/TPI
13.40 tonnes
BCM
43.01 meters
KTM
33.50 meters
IGS fitted
Yes
SBT/CBT
SBT
VRS
Yes
Gross tonnage
3,308
Net tonnage
1,503
Crane(s) SWL
SWL 5 tons
Coating
Epoxy
P & I Club
Standard
anchour

M/T Ängön



SHIP DATA

Imo no:
9131199
Flag
Swedish
Built
11/1997
Classification Society
DNV-GL
Ice Class
Finnish/Swedish 1 B
Hull
Double Hull IMO II
Summer deadweight
2,490 mts
Summer draft
5.31 meters
Winter deadweight
2,400 mts.
Winter draft
5.10 meters
Length over all
85.26 meters
Beam
12.27 meters
Cubic capacity (98%)
2,626 m3
Slop tanks (98%)
439 m3.
Segregations
6 (separate lines/pumps)
TPC/TPI
8.4 mts. (TPC)
BCM
40.00 meters
KTM
28.00 meters
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
1,627
Net tonnage
741
Crane(s) SWL
1 x 0.65Mts, 1 x 0.95 mts
Coating
Epoxy
P & I Club
Swedish Club
anchour

M/T Atlantic



SHIP DATA

Imo no:
9268186
Flag
Danish (DIS)
Built
10/2002
Classification Society
Germanischer Lloyd
Ice Class
Finnish/Swedish 1 B
Hull
Double Hull IMO II
Summer deadweight
6,019 mts.
Summer draft
6.75 meters
Winter deadweight
5,748 mts.
Winter draft
6.61 meters
Length over all
103.20 meters
Beam
15.00 meters
Cubic capacity (98%)
5,142 m3.
Slop tanks (98%)
144 m3.
Segregations
9 (double valve)
TPC/TPI
14.10 mts. (TPC)
BCM
56.00 meters
KTM
26.00 meters
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
4,341
Net tonnage
1,302
Crane(s) SWL
2 x 1.5 Mts.
Coating
Epoxy
P & I Club
Gard
anchour

M/T Besiktas Iceland



SHIP DATA

Imo no:
9395364
Flag
Malta
Built
2007
Classification Society
Registro Italiano Navale
Ice Class
1A
Hull
Double Hull
Summer deadweight
7,700 mts.
Summer draft
6.86 meters
Winter deadweight
7,444 mts.
Winter draft
6.71 meters
Length over all
122.66 meters
Beam
17.20 meters
Cubic capacity (98%)
38 429 m3.
Slop tanks (98%)
182 m3.
Segregations
14
TPC/TPI
17 tonnes
BCM
64.29 meters
KTM
33.00 meters
IGS fitted
Yes
SBT/CBT
SBT 3,637 m3
VRS
Yes
Gross tonnage
5,366
Net tonnage
2,475
Crane(s) SWL
1 x 5 tonnes
Coating
Epoxy, Interline 704
P & I Club
The Standard
anchour

M/T Besiktas Orient



SHIP DATA

Imo no:
9517446
Flag
Malta
Built
08/2009
Classification Society
Bureau Veritas
Ice Class
N/A
Hull
Double Hull IMO II
Summer deadweight
4127,00 mts.
Summer draft
5,80 meters
Winter deadweight
3981,69 mts.
Winter draft
5,68 meters
Length over all
98,71 meters
Beam
14,10 meters
Cubic capacity (98%)
4177,76 m3
Slop tanks (98%)
104,606 m3
Segregations
11 (double valve)
TPC/TPI
12,051 mts. (TPC)
BCM
49,63 meters
KTM
30,88 meters
IGS fitted
Yes (nitrogen)
SBT/CBT
SBT
VRS
Yes
Gross tonnage
2.974
Net tonnage
1.192
Crane(s) SWL
1 x 5 mts
Coating
Marine Line
P & I Club
The Standard Club
anchour

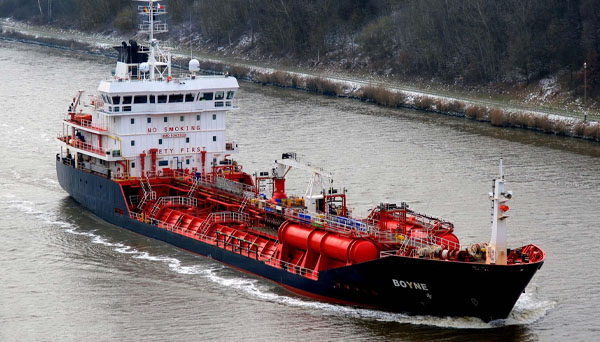

M/T Boyne



SHIP DATA

Imo no:
9369928
Flag
Malta
Built
07/2007
Classification Society
Bureau Veritas
Ice Class
1C
Hull
Double Hull IMO II
Summer deadweight
5701,70 mts.
Summer draft
6,29 meters
Winter deadweight
5505,40 mts.
Winter draft
6,159 meters
Length over all
105,50 meters
Beam
16,80 meters
Cubic capacity (98%)
6292,197 m3
Slop tanks (98%)
160,72 m3
Segregations
12 (double valve)
TPC/TPI
14.98 mts. (TPC)
BCM
45,90 meters
KTM
32,28 meters
IGS fitted
Yes (nitrogen)
SBT/CBT
SBT
VRS
Yes
Gross tonnage
3.974
Net tonnage
1.820
Crane(s) SWL
1 x 5 mts
Coating
Marine Line
P & I Club
The Standard Club
anchour

M/T Copenhagen



SHIP DATA

Imo no:
9327487
Flag
Danish (DIS)
Built
01/2006
Classification Society
Germanischer Lloyd
Ice Class
None
Hull
Double Hull IMO II
Summer deadweight
3,522 mts.
Summer draft
5.41 meters
Winter deadweight
3,404 mts.
Winter draft
5.29 meters
Length over all
90.50 meters
Beam
14.60 meters
Cubic capacity (98%)
4,360 m3.
Slop tanks (98%)
126.6 m3.
Segregations
5 (double valve)
TPC/TPI
11.900 mts. (TPC)
BCM
41.90 meters
KTM
33.00 meters
IGS fitted
Yes (nitrogen)
SBT/CBT
SBT
VRS
Yes
Gross tonnage
3,021
Net tonnage
1,125
Crane(s) SWL
1 x 1,5 Mts.
Coating
Epoxy
P & I Club
Gard
anchour

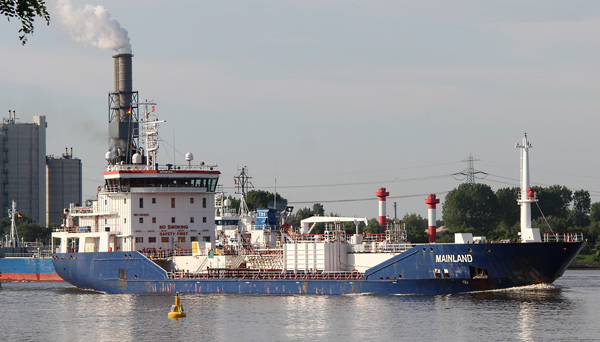

M/T Mainland



SHIP DATA

Imo no:
9431056
Flag
Built
nov 10, 2008
Classification Society
Bureau Veritas
Ice Class
Hull
Double Hull
Summer deadweight
7749.81 mt
Summer draft
6.86 meters
Winter deadweight
Winter draft
Length over all
122.66 meters
Beam
17.20 meters
Cubic capacity (98%)
8429.264 m3 (ex slops)
Slop tanks (98%)
186.748 m3
Segregations
14
TPC/TPI
17.87 mt / 44.675 lt
BCM
64.70 meters
KTM
34.88 meters
IGS fitted
no
SBT/CBT
SBT
VRS
Yes
Gross tonnage
5823.00
Net tonnage
2451.00
Crane(s) SWL
1 x 5mt
Coating
Marine line, whole tank
P & I Club
The Standard
anchour

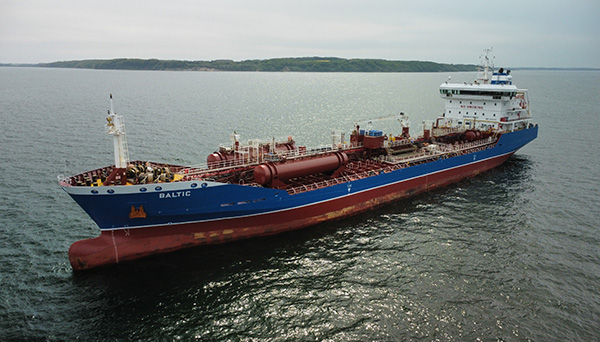

M/T OW Baltic



SHIP DATA

Imo no:
9326677
Flag
Uruguay
Built
04/2005
Classification Society
Germanischer Lloyd
Ice Class
None
Hull
Double Hull
Summer deadweight
3,814 mts.
Summer draft
5.66 meters
Winter deadweight
3,814 mts.
Winter draft
5.66 meters
Length over all
83.4 meters
Beam
12.96 meters
Cubic capacity (98%)
3,481 m3.
Slop tanks (98%)
78 m3.
Segregations
2 (double valve)
TPC/TPI
10.000 mts. (TPC)
BCM
41.00 meters
KTM
25.00 meters
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
2,143
Net tonnage
969
Crane(s) SWL
1 x 0.99 Mts.
Coating
Zink silicate (top of tanks)
P & I Club
Gard
anchour

M/T Pacific



SHIP DATA

Imo no:
9308900
Flag
Danish (DIS)
Built
2008
Classification Society
Germanischer Lloyd
Ice Class
Finnish/Swedish 1 A
Hull
Double Hull IMO II
Summer deadweight
8,129 mts.
Summer draft
7.41 meters
Winter deadweight
7,858 mts.
Winter draft
7.25 meters.
Length over all
114.65 meters
Beam
17.32 meters
Cubic capacity (98%)
8,486 m3.
Slop tanks (98%)
228.318 m3.
Segregations
5 (double valve)
TPC/TPI
17.7 Mts. (Tpc)
BCM
57.40 meters
KTM
33.65 meters
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
5,944
Net tonnage
4,777
Crane(s) SWL
1 x 5 Mts.
Coating
Epoxy, Interline 704
P & I Club
GARD
anchour

M/T Scandinavia



SHIP DATA

Imo no:
9341419
Flag
Danish (DIS)
Built
03/2006
Classification Society
Germanischer Lloyd
Ice Class
None
Hull
Double Hull
Summer deadweight
3,807 mts.
Summer draft
5.66 meters
Winter deadweight
3,814 mts.
Winter draft
5.66 meters
Length over all
83.4 meters
Beam
12.96 meters
Cubic capacity (98%)
3,483 m3.
Slop tanks (98%)
76 m3.
Segregations
2 (double valve)
TPC/TPI
10.000 mts. (TPC)
BCM
41.00 meters
KTM
25.00 meters
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
2,164
Net tonnage
969
Crane(s) SWL
1 x 0.99 Mts.
Coating
Zink silicate (top of tanks)
P & I Club
Gard
anchour

M/T Vinga Safir



SHIP DATA

Imo no:
9200158
Flag
Faroe Island
Built
2000
Classification Society
DNVGL
Ice Class
1D
Hull
Double Hull
Summer deadweight
2.653
Summer draft
5.19m
Winter deadweight
2.560
Winter draft
5.78m
Length over all
79.92m
Beam
12.75m
Cubic capacity (98%)
2.618m3
Slop tanks (98%)
Segregations
2
TPC/TPI
8.48/21.2LT
BCM
35.50m
KTM
IGS fitted
No
SBT/CBT
SBT
VRS
Yes
Gross tonnage
1.685
Net tonnage
715
Crane(s) SWL
1 x 1mt
Coating
Epoxy
P & I Club
Gard
